   Home >> Multi Display >> Matrox combine card
[DP]Matrox m9188 2Gһ8ʾ˫16ƴӳߴĻ
[DP]Matrox m9188 2Gһ8ʾ˫16ƴӳߴĻ
Unit price
MOQ
BIOS
Driver
datasheet m9188Ʒϱ˵
procedure dwg
Hits   17352
   More photo
   Brief description

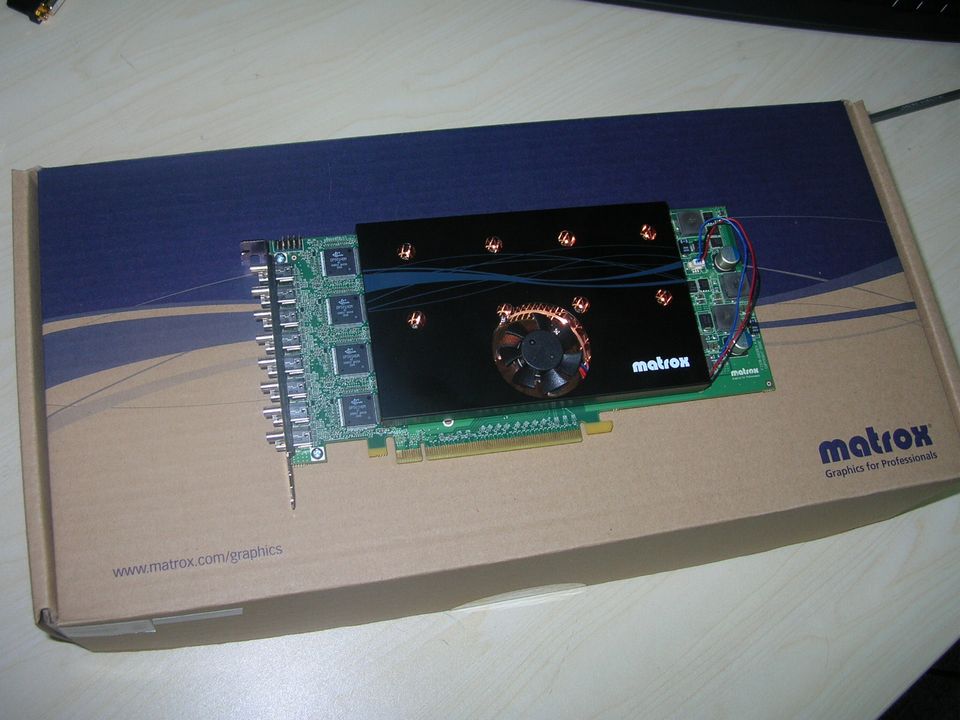

M9188-E2048F
   Detail

/swf/m9188.swf

Part Number
MGI M9188-E2048F
Bus Type
PCIe x16
Graphics Memory
2048MB
Card Form Factor (PCB / bracket)
ATX
Extra bracket in the box
Card Dimensions
9.0" (L) x 4.4" (H)
On-board Connectors
8 x Mini DisplayPort
Connector Adapters
8 x Mini DisplayPort to DisplayPort, 8 x DisplayPort to DVI
Max Display Outputs per Card
8
Supported Display Output Types
DisplayPort , DVI SL
Max DisplayPort Resolution per Output
2560x1600
Max DVI Resolution per Output
1920x1200
Independent Desktop Mode
Yes
Stretched Desktop Mode
Yes1
Pivot Support
Yes
Passive Cooling
No
Unified Driver Package
Yes
PowerDesk Software
Yes
EMC Certifications
Class B
Aftermarket Cable/Adapter Upgrades
C
Supported Operating Systems2
Microsoft® Windows® Vista (32/64bit), Microsoft® Windows® 7, Microsoft® Windows® XP (32/64bit), Microsoft® Windows® Server 2003/2008 (32/64bit), and Linux
Open GL support
2.0
Environmental
ROHS & WEEE compliant
Warranty
3 years


1 Operating system dependent. Contact Matrox for details.

2 Limited supported under Windows 7 and Microsoft Windows Vista, contact Matrox for details.
pcidv.com/matrox m9188 *2,4x3 12 monitors display-wall
pcidv.com/matrox m9188 *2,4x3 12 monitors display-wall
