   Home >> IPC products >> MXM Graphics

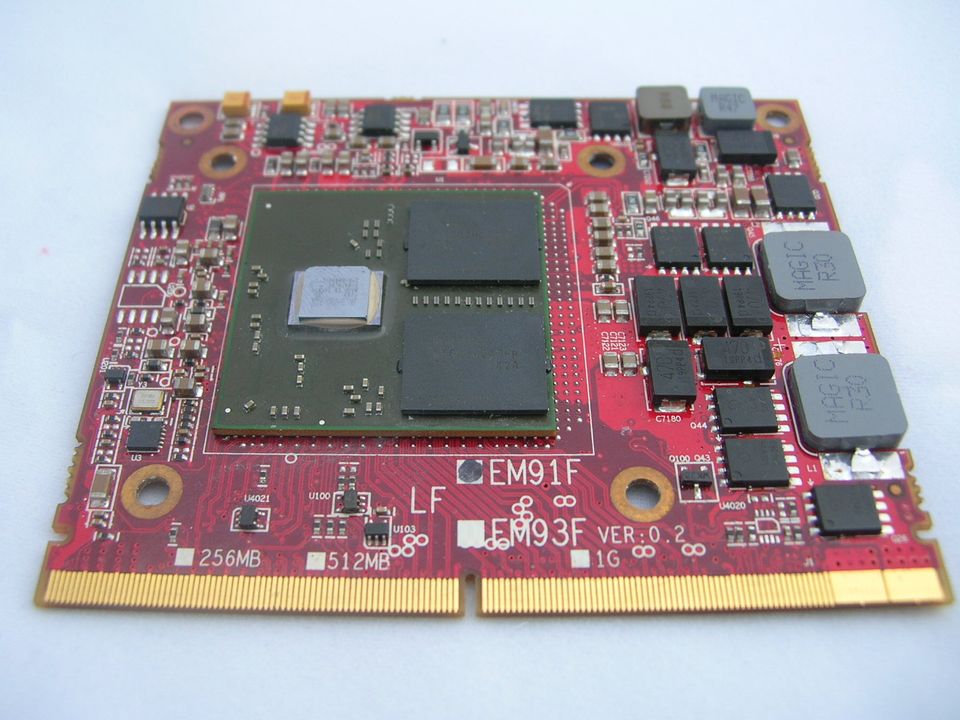

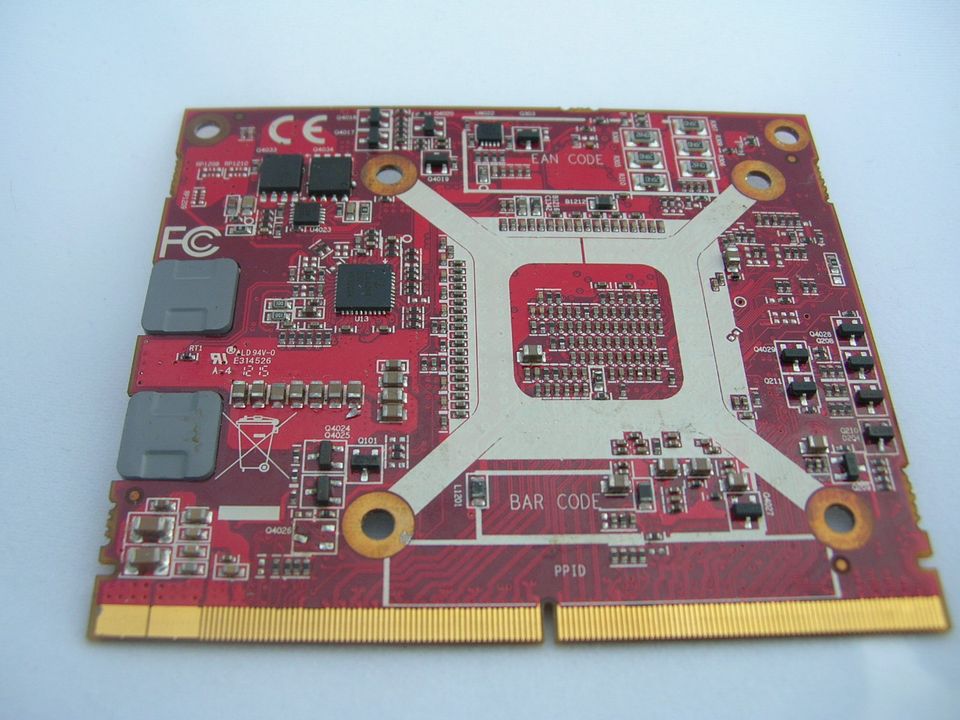

ATI Radeon E4690/E6460/E6760 MXM V3.0 Module
ATI Radeon E4690/E6460/E6760 MXM V3.0 Module
Unit price：
MOQ：
BIOS：
Driver： XP & Win7 dirver download
datasheet： E6460/E6760 specification
procedure dwg： E6460/E6760 Manual
Hits：   15221
   More photo
   Brief description
100-CG2261,made in China manufacture
   Detail

The ATI RadeonTM E4690 MXM Module delivers exceptional graphics performance in a
compact, low-profile, industry standardized module. Based on the Mobile PCI Express Module (MXM) Version 3.0 Type A board specification, the ATI Radeon E4690 MXM Module delivers superior graphics and video capabilities to embedded designs. It is ideal for demanding applications such gaming, medical imaging, digital signage and military/aerospace displays.

The on-board ATI Radeon E4690 GPU along with ATI AvivoTM HD display technology enables this module to deliver superior video playback fidelity, low CPU utilization and brilliant picture clarity.

Features & Benefits

  • 320 shader processors
  • 3DMark06 HDR/SM3.0 2,669*
  • 128-bit, 512MB GDDR3
  • Next generation video decode
  • H.264, VC-1, MPEG-2
  • Picture-in-Picture
  • 5 year supply**
  • Dedicated support

Specification of E6460 & E6760 MXM Series



MXM Module

(AMD Radeon™ E6460)

(AMD Radeon™ E6760)

Module Number

EM91F

EM93F

Graphics Processing Unit

　

　

Process Technology

40 nm

40 nm

Graphics Engine Operating Frequency (max)

600 MHz

600 MHz

MXM type

MXM 3.0,Type A

MXM 3.0, Type A

CPU Interface

PCI Express® 2.1 (X16)

PCI Express® 2.1 (X16)

Shader Processing Units

2 SIMD engines x 80 processing elements = 160 shaders

6 SIMD engines x 80 processing elements = 480 shaders

Floating Point Performance (single precision, peak)

192 GFLOPs

576 GFLOPs

DirectX® capability

DirectX® 11

DirectX® 11

Shader Model

Shader Model 5.0

Shader Model 5.0

OpenGL

OpenGL 4.1

OpenGL 4.1

OpenCL™ compliant

AMD APP8, OpenCLTM 1.19, DirectCompute 11

AMD APP8, OpenCLTM 1.19, DirectCompute 11

Unified Video Decoder (UVD)

UVD3 for H.264, VC-1, MPEG-2, MPEG-4 part 2 decode

UVD3 for H.264, VC-1, MPEG-2, MPEG-4 part 2 decode

Memory

　

　

Operating Frequency (max)

800 MHz / 3.2 Gbps

800 MHz / 3.2 Gbps

Configuration, type

64-bit wide, 512 MB, GDDR5, 25.6 GB/s

128-bit wide, 1 GB, GDDR5, 51.2 GB/s

   Related pictures MORE>>　
JM7201 MXM J
Embedded MXM
ATI Radeon E
Notebook lap
Notebook lap
   Related Articles

OPN

MODEL

OUTPUT

COOLING

100-CG2266

AMD Embedded Radeon™  E6760 MCM Module

6 x DisplayPort / HDMI® / DVI

N/A

100-K00159

AMD Embedded Radeon™ E6760 MXM Type A Module

5 x DisplayPort / HDMI / DVI

N/A

100-K00156

AMD Embedded Radeon™ E6760 MXM Type A Module

DVI-I + DVI-D + HDMI

Fansink

100-K00157

AMD Embedded Radeon™ E6760 MXM Type A Module

DVI-I + DVI-D + HDMI

Heatsink

100-K00172

AMD Embedded Radeon™ E6760 MXM Type A Module

DVI-I + DVI-D + HDMI

N/A

100-K00170

AMD Embedded Radeon™ E6760 MXM Type A Module

6 x DisplayPort / HDMI / DVI

Fansink

100-K00171

AMD Embedded Radeon™ E6760 MXM Type A Module

6 x DisplayPort / HDMI / DVI

Heatsink

100-438019

AMD Embedded Radeon™ E6760 PCIe Board

2 x DVI and 1x mini DisplayPort

Fansink

100-438042

AMD Embedded Radeon™ E6760 PCIe Board

2 x DVI and 1x mini DisplayPort

Heatsink

100-438060

AMD Embedded Radeon™ E6760 PCIe Board

6 x mini DisplayPort

Fansink

100-438061

AMD Embedded Radeon™ E6760 PCIe Board

6 x mini DisplayPort

Heatsink

100-438037

AMD Embedded Radeon™ E6760 PCIe Board

6 x DisplayPort (with mDP to DP adapters)

Low-Power Heatsink

100-438059

AMD Embedded Radeon™ E6760 PCIe Board

6 x DisplayPort

Low-Power Heatsink

100-438038

AMD Embedded Radeon™ E6760 PCIe Board

6 x DisplayPort (with mDP to DP adapters)

Fansink

100-438039

AMD Embedded Radeon™ E6760 PCIe Board

6 x DisplayPort (with mDP to DP adapters)

Heatsink

100-438020

AMD Embedded Radeon™ E6760 PCIe Board

6 x DVI (with mDP to DVI adapters)

Fansink

100-438023

AMD Embedded Radeon™ E6760 PCIe Board

6 x DVI (with mDP to DVI adapters)

Heatsink

100-438081

AMD Embedded Radeon™ E6760 PCIe Board

4 x DisplayPort

Fansink

100-438084

AMD Embedded Radeon™ E6760 PCIe Board

4 x DisplayPort

Heatsink

100-438104

AMD Embedded Radeon™ E6760 PCIe Board

6 x DVI

Heatsink

100-438136

AMD Embedded Radeon™ E6760 PCIe Board

6 x DVI

Fansink

100-CG2763

AMD Embedded Radeon™  E6465MCM Module

4 x DisplayPort / HDMI / DVI

N/A

100-K00209

AMD Embedded Radeon™ E6465MXM Type A Module

4 x DisplayPort / HDMI / DVI

N/A

100-K00210

AMD Embedded Radeon™ E6465MXM Type A Module

4 x DisplayPort / HDMI / DVI

Heatsink

100-438182

AMD Embedded Radeon™ E6465PCIe Low Profile Board

4 x mini DisplayPort

Heatsink

100-438181

AMD Embedded Radeon™ E6465PCIe Low Profile Board

2 x DisplayPort

Heatsink

100-CG2261

AMD Embedded Radeon™  E6460 MCM Module

4 x DisplayPort / HDMI / DVI

N/A

100-K00169

AMD Embedded Radeon™  E6460 MXM Type A Module

DVI-I + DVI-D + HDMI

N/A

100-K00177

AMD Embedded Radeon™  E6460 MXM Type A Module

DVI-I + DVI-D + HDMI

Fansink

100-K00168

AMD Embedded Radeon™  E6460 MXM Type A Module

DVI-I + DVI-D + HDMI

Heatsink

100-K00174

AMD Embedded Radeon™  E6460 MXM Type A Module

4 x DisplayPort / HDMI / DVI

N/A

100-K00178

AMD Embedded Radeon™  E6460 MXM Type A Module

4 x DisplayPort / HDMI / DVI

Fansink

100-K00173

AMD Embedded Radeon™  E6460 MXM Type A Module

4 x DisplayPort / HDMI / DVI

Heatsink

100-438047

AMD Embedded Radeon™  E6460 PCIe Board

2 x DVI and 1x mini DisplayPort

Heatsink

100-438062

AMD Embedded Radeon™  E6460 PCIe Low Profile Board

4 x mini DisplayPort

Heatsink

100-438048

AMD Embedded Radeon™  E6460 PCIe Low Profile Board

4 x mini DisplayPort (with mDP to DP adapters)

Heatsink

100-438049

AMD Embedded Radeon™  E6460 PCIe Low Profile Board

4 x DVI (with mDP to DVI adapters)

Heatsink
