   Home >> KVM|Switch|Splitter >> optic HDMI/DP Extender

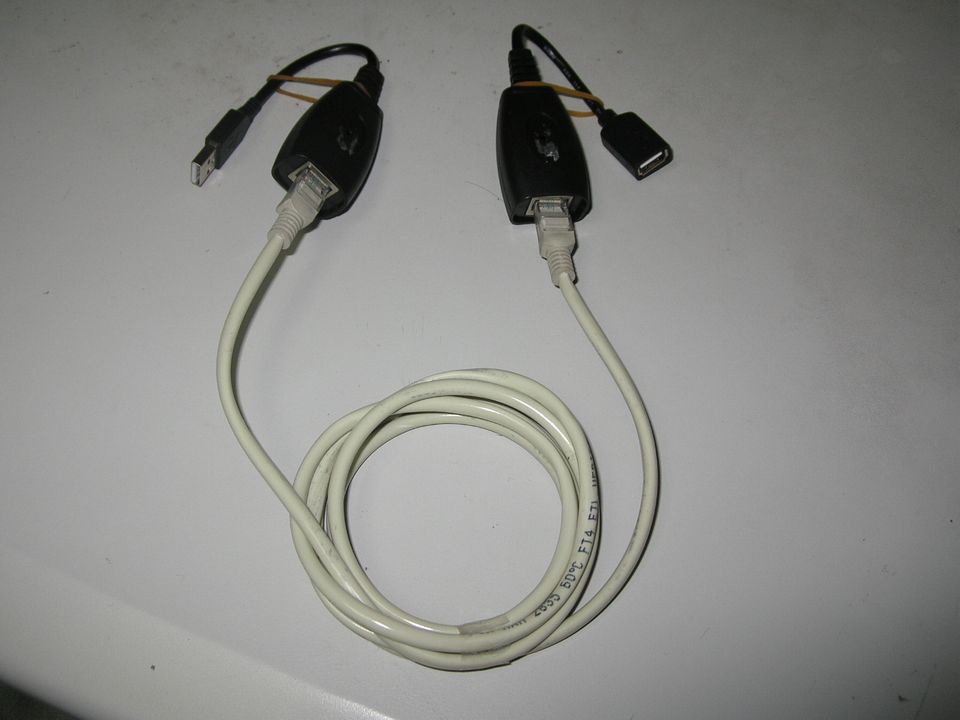

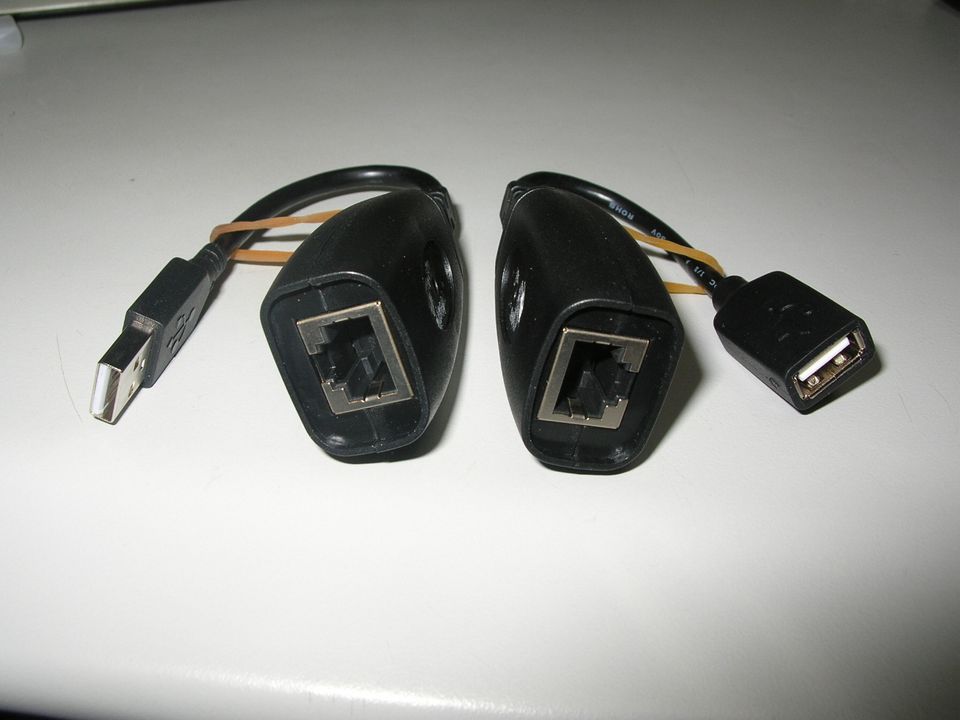

UTP-USB extender Over Cat.5e cable via RJ45 USB Extension Adapter
UTP-USB extender Over Cat.5e cable via RJ45 USB Extension Adapter
Unit price£º
MOQ£º
BIOS£º
Driver£º
datasheet£º UTP USB Extension Adaptor tested report
procedure dwg£º
Hits£º   10507
   More photo
   Brief description
Oem made in china manufacturer
   Detail
Introduction:
This device is an extension cable between USB device and host(computer) with embedded into connector ¡°intelligent¡± integrated circuits on both sides of the cable.
The USB cable with the chip inside is not a passive extension cable. It is an active device.
The USB signals going in and out of this extension cable in both directions are buffered to assure signal quality.
Unlike passive USB cables the IC prevents signal degradation. The embedded ¡°intelligent¡± integrated circuit cleans, amplifies USB signal and watches USB 1.1 protocol.
Its Control State Machine enables and disables USB and Cable transmitters inside the chip depending on USB signals.
Features
1) Compliant with USB 1.1 specification;
2) Provides support for any full-speed (12 Mb/s) or low-speed (1.5 Mb/s) USB device;
3) Some low power low-speed USB devices can work with cable up 160ft.
4) Embedded USB 1.1 Transceivers prevents signal loss;
5) Downstream connector: Female, Type ¡°A¡±, USB Approved Connector;
6) Upstream connector: Male Type ¡°A¡±, USB Approved Connector.
