Part number |

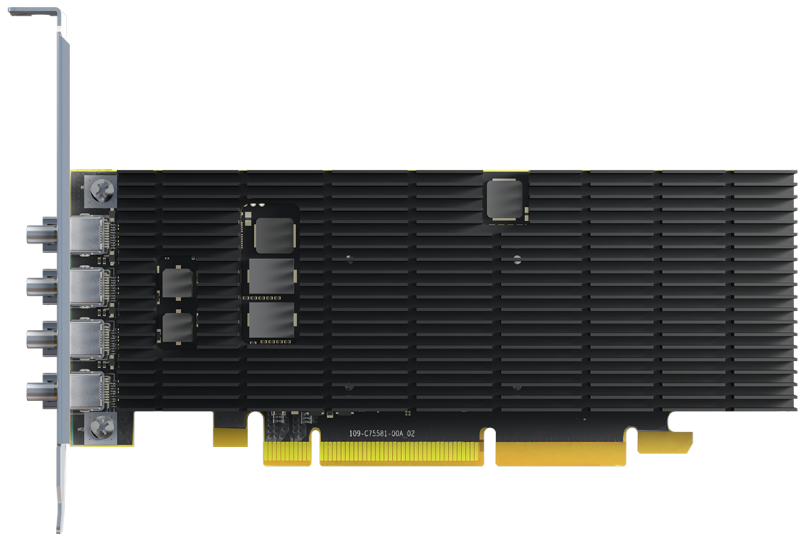

LUMA-A310 |

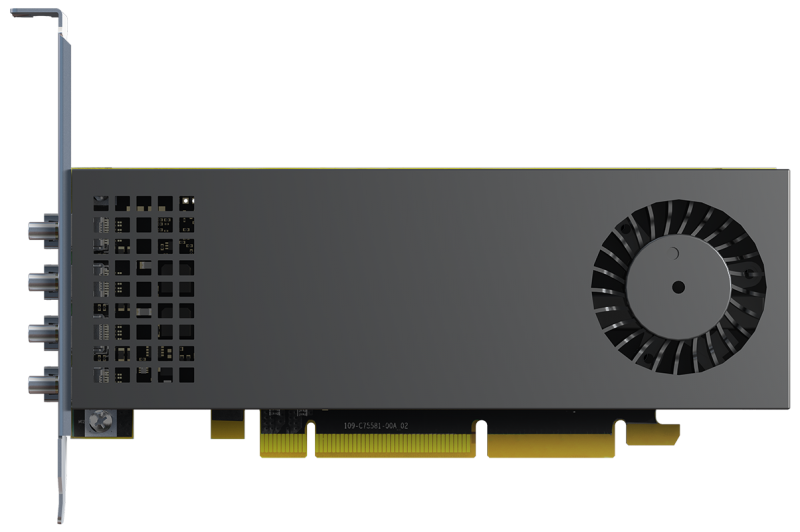

LUMA-A310F |

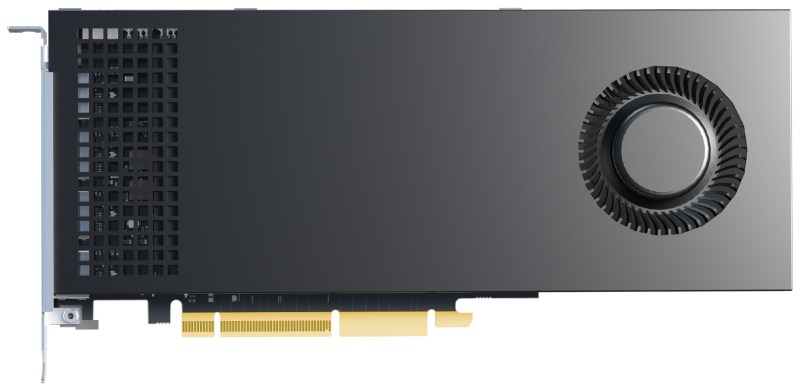

LUMA-A380 |
|
Bus type |
PCIe 4.0 x16 (x8 electrical) |
PCIe 4.0 x16 (x8 electrical) |
PCIe 4.0 x16 (x8 electrical) |
|
Number of video outputs |
4 |
4 |
4 |
|
Video output connectors |
4x Mini DisplayPort (secure) |
4x Mini DisplayPort (secure) |
4x DisplayPort |
|
DisplayPort specification |
2.1 UHBR10 |
2.1 UHBR10 |
2.1 UHBR10 |
|
Maximum number of cards in a system |
4 |
4 |
4 |
|
Performance |
|
Maximum resolution |
2x 8K60/5K120 or
4x 5K60 HDR 12b |
2x 8K60/5K120 or
4x 5K60 HDR 12b |
2x 8K60/5K120 or
4x 5K60 HDR 12b |
|
Bit depth and color space |
• Up to 36 bpp (Bits per Pixel)
• YCbCR 4:4:4
• YCbCR 4:2:0
• RGB |
• Up to 36 bpp (Bits per Pixel)
• YCbCR 4:4:4
• YCbCR 4:2:0
• RGB |
• Up to 36 bpp (Bits per Pixel)
• YCbCR 4:4:4
• YCbCR 4:2:0
• RGB |
|
Memory |
4GB GDDR6 |
4GB GDDR6 |
6GB GDDR6 |
|
GPU |
Intel® Arc™ A310 |
Intel® Arc™ A310 |
Intel® Arc™ A380 |
|
Multi-stream audio |
High-definition audio streams on four digital ports simultaneously |
|
Additional features |
|
DisplayPort features |
VESA DSC 1.2a and Adaptive Sync |
|
HDCP compliance |
2.3 |
2.3 |
2.3 |
|
Board-to-board framelock |
|
|
|
|
Supported graphics API |
DirectX 12 Ultimate, OpenGL 4.6, OpenCL 3.0, Vulkan 1.3, oneAPI, OpenVINO |
|
Hardware video encode/decode |
H264/H265/AV1/VP9 |
|
Environmental & Power consumption |
|
Cooling |
Passive |
Active |
Active |
|
Power consumption |
30W |
50W |
75W |
|
Operating temperature |
0 to 45 ºC (32 to 113°F) |
0 to 45 ºC (32 to 113°F) |
0 to 45 ºC (32 to 113°F) |
|
Hardware |
|
Form factor |
Low Profile Single Slot |
Low Profile Single Slot |
Standard Height Single Slot |
|
Dimensions |
Length: 16.76 cm (6.6”)
Height: 6.86 cm (2.7”) |
Length: 16.76 cm (6.6”)
Height: 6.86 cm (2.7”) |
Length: 25.38 cm (9.99”)
Height: 12.68 cm (4.99”) |
|
Bracket |
Standard Height (Mounted)
Low Profile (in the box) |
Standard Height (Mounted)
Low Profile (in the box) |
Standard Height |
|
Environmental & Power consumption |
|
Regulatory compliance |
FCC (US) Class B, CE (European Union) Class B, RCM (Australia/New Zealand) Class B,
KC (Korea) Class B, ICES-3 (Canada) Class B, UKCA (United Kingdom) Class B. |
|
Environmental compliance |
EU RoHS, China RoHS, REACH |
|
Warranty* |
3 years |
3 years |
3 years |
|
Software & API |
|
Matrox PowerDesk for Windows |
3 |
3 |
3 |
|
Mura Developer tools |
3 |
3 |
3 |
|
Operating systems |
Windows 10/11, Ubuntu 22.04** |
|
System requirements |
Single available PCIe 3.0 (or newer) x8 slot, Resizable BAR (reBAR) or Smart Access Memory (SAM) |
|
Accessories (sold separately) |
|
Mini DisplayPort to DisplayPort adapter |
CAB-MDP-DPF |
CAB-MDP-DPF |
|
|
Secure cable solution |
SK-SLNB-4F |
SK-SLNB-4F |
— |
